1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output

Propriétés de base
Lieu d'origine: Shenzhen, Chine (continentale)
Nom de la marque: ESTEL
Certificat: ISO9001, CE, 3C, FCC, TLC
Numéro de modèle: 1 à 3 kVA
Propriétés commerciales
Quantité minimum de commande: 1
Prix: 358-2143 usd
Conditions de paiement: L / C, D / A, D / P, T / T, Western Union
Capacité d'approvisionnement: 20 000 ensembles par mois
Étiquettes

système d'alimentation électrique de télécommunications

Système d'alimentation électrique par télécommunications à énergie hybride

Système d'alimentation en télécommunications
Résumé du produit
Uninterruptible Power Supply(UPS) Product Overview ESTEL 1-3kVA UPS series is specially designed for server applications in small and medium-sized enterprises.It supports rack installation mode and tower installation mode.Featuring an online double-conversion design and DSP digital technology,it ...

Détails de produit

Mettre en évidence:

1-3kVA UPS single-phase input

,

UPS single-phase output power supply

,

uninterruptible power supply with warranty
Input Voltage Range: 50 % de charge : 115-300VAC ; 100 % de charge : 160-280VAC
Input Frequency Range: 40Hz-70Hz
Power Factor: ≥0,99 (100 % de charge)
Voltage Stabilization Accuracy: ± 1%
Output Voltage: 208 VCA à 220 VCA à 230 VCA à 240 VCA
Output Frequency: 50 Hz ± 0,25 Hz, 60 Hz ± 0,25 Hz
Description du produit

Uninterruptible Power Supply(UPS)



Product Overview

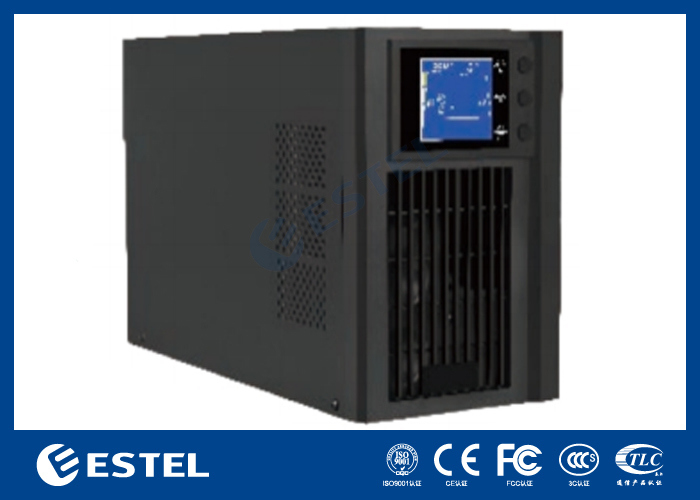

ESTEL 1-3kVA UPS series is specially designed for server applications in small and medium-sized enterprises.It supports rack installation mode and tower installation mode.Featuring an online double-conversion design and DSP digital technology,it delivers pure sine wave output with exceptional performance and a high-end appearance,it presents the perfect integration of cutting-edge technology and traditional products.



Product Features

  • Advanced DSP digital controltechnology,ensures more stable performance and superior quality;
  • Output power factoris 0.8, aligning with the evolving trends of power consuming equipment and providing stronger load capacity;
  • Active input powerfactor correction(PFC), achieving an input power factor of up to 0.98 or higher;
  • Wide input voltage range and frequency range, capable of adapting to areas with extremely harsh power conditions,including remote regions;
  • Compatible with generator;
  • Zero switching time, effectively ensuring the safety and reliability of load
UPS Capacity 1K 1KL 2K 2KL 3K 3KL
Rated Output Capacity 1kVA/0.8kW 2KVA/1.6kW 3KVA/2.4kW

AC Input

 Input Voltage Range 50%load:115-300VAC;100%load:160-280VAC
Input Frequency Range 40Hz-70Hz
Power Factor ≥0.99(100%load)





Battery lnput

 Battery Pack Voltage 24V 36V 48V 72V 72V 96V
Battery Mode Built-in External Built-in External Built-in External
Charging Voltage 27.4VDC 41.3VDC 54.7VDC 82.1VDC 82.1VDC 109.4VDC
Charging Current 1A 6A(max) 1A 6A(max) 1A 6A(max)
Battery Charging Time Built-in batteries:5hrs to 90%;External batteries:depends on battery pack capacity











AC Output

 Voltage Stabilization Accuracy ±1%
Output Voltage 208VAC @220VAC@230VAC@240VAC
Output Frequency 50Hz±0.25Hz,60Hz±0.25Hz
Waveform Linear load:Sine wave,THD<3%;Non-linear load:Sine wave,THD<8%;
Output Power Factor 0.8
Overload Capability AC Mode 100%-110%:10min;110%-130%:1min;>130%:1sec
Battery Mode 100%-110%:30sec;110%-130%:10sec;>130%:1sec
Output Current Peak Coeficient 3:1
Inverter Bypass 4ms(Typical)
Mains and battery switch time 0ms
Efficiency AC Mode 88% 89% 90%
Battery Mode 83% 87% 88%
Communication and Monitoring

RS232(can convert to RS485);Smart card slot(can expand with multiple

monitoring modes,via SNMP,mobile phone text message,etc.)
Tower Type Weight (kg) 8 4.5 16.5 6.8 28 11.5
Size(D×W×H)(mm) 280×145×225 400×145×225 433×190×318

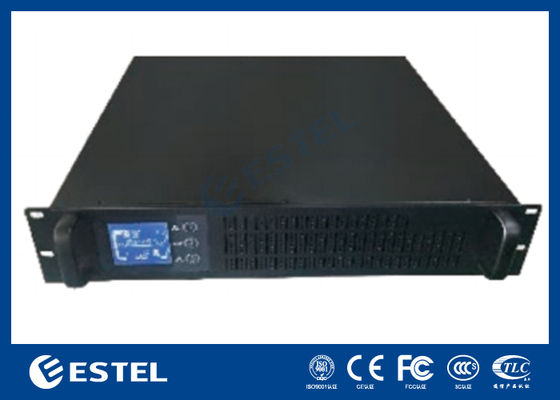

Rack Type

 Weight(kg) 10.5 7 18 8 24.5 8.7

Weight

(kg)

 External battery type 420×440×85 420×440×85 420×440×85
Built-in battery type 420×440×85 590×440×85 590×440×85
