12U 30kw 96% High Efficiency Hybrid Power Rectifier System RS485 Communication

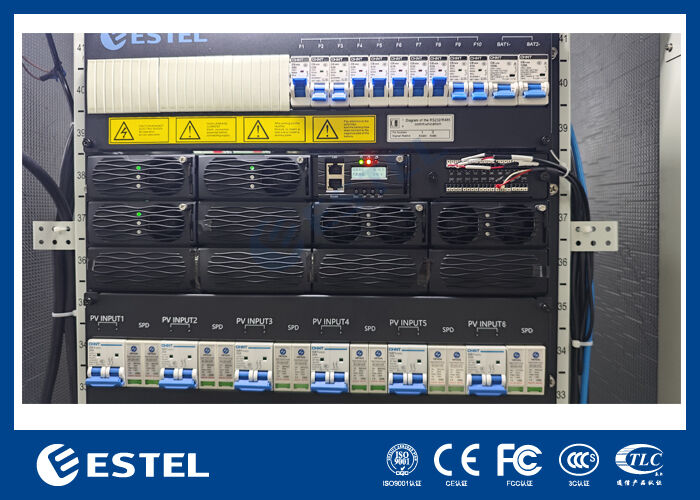

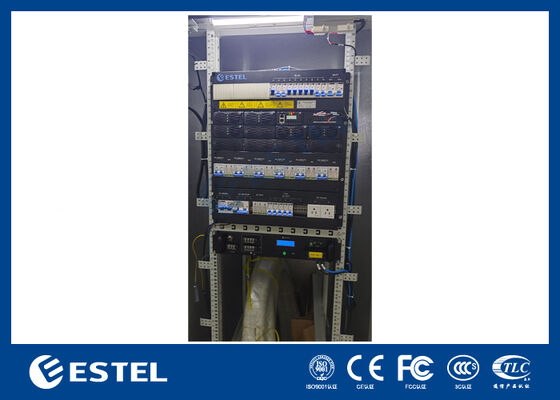

Product Overview of 12U 30kw Hybrid Power Rectifier System
Designed for telecommunications infrastructure, medium-to-large data centers, and demanding environmental conditions, the 30kW Hybrid Power Rectifier System delivers stable AC and DC power distribution. It accepts dual inputs—220V AC and photovoltaic (PV)—and produces a precisely regulated DC output adjustable from –43V to –58V (typically –53.5V). In addition, the system provides a 110V AC output at 16A, complete with Class C surge protection. With a maximum capacity of 30kW and conversion efficiencies exceeding 96% across most of its load range, the unit substantially reduces energy consumption and associated cooling demands.
Built for continuous operation, the rectifier accommodates up to 10 hot-swappable 3000W modules (6 powered by PV and 4 by AC), supporting N+1 or higher redundancy configurations. Each module features forced-air cooling, active Power Factor Correction (PFC ≥ 0.99), and low Total Harmonic Distortion (THDi ≤ 5%), ensuring clean grid interaction and stable output. All components are installed in a 12U, 19-inch rack-mountable chassis rated IP20. Front-access hot-swap capability simplifies maintenance, while rear-mounted copper busbars provide a low-impedance, high-current connection path.
The integrated DC distribution includes battery low-voltage disconnect (BLVD), enabling prioritized load shedding to preserve critical battery reserves during outages. An advanced system controller offers comprehensive monitoring and programmable logic via analog inputs (AI), digital inputs (DI), and digital outputs (DO). Remote management is supported through RS485 and SNMP interfaces, giving operators full visibility into alarms, performance metrics, and rectifier status. A front-panel LCD also allows convenient on-site configuration and diagnostics.
Basic Specification of 12U 30kw Hybrid Power Rectifier System
| Dimension |
482.5mm(W)*350mm(D)*12U(H) |
| Weight |
≤50kg (without rectifiers) |
| Cooling mode |
Natural cooling |
| Installation mode |
19-inch rack mounted |
| Maintenance |
Front maintenance, module grade change supported |
| Protection grade |
IP20 |
Power Distribution of 12U 30kw Hybrid Power Rectifier System
|
AC Distribution
|
Input volatage |
single-phase 220VAC |
| Input breaker |
2*125A 2P(one for backup) |
| Input frequency |
45~65Hz, rated value: 50Hz/60Hz |
| Output |
110VAC, 2*63A 1P, 3*32A 1P |
| SPD |
20/40KA, 8/20us |
|
DC Distribution
|
Input voltage |
120VDCto 425VDC |
| Input breaker |
6*25A 2P |
| SPD |
20/40KA, 8/20us |
| Output voltage |
-43~-58VDC, rated value: -53.5VDC |
|
Output capacity
|
30kw(10*3kw, N+1 redundancy)
PV module: 6*3kw
Rectifier moudle: 4*3kw
|
| Battery breaker |
2*125A 1P circuit breaker |
| Load breaker |
BLVD: 1*63A/1P+3*20A/1P+6*10A/1P |
Rectifier Module of 12U 30kw Hybrid Power Rectifier System
| Input voltage |
85VAC～300VAC, rated 220VAC |
| Efficiency |
>96% |
| Rated power |
3000W(176~300VAC) |
| Working temperature |
-40℃~+75℃(50℃ @ fully output) |
| Dimension |
106.5mm(W)×286mm(D)×44.5mm(H)(1U height) |
| Weight |
≤2kg |
| Cooling mode |
Forced cooling |
| Power factor |
≥0.99 |
| THD |
≤5% |
| DC output |
–43 ~ –58VDC, rated –53.5VDC, 55A maximum |
PV Module of 12U 30kw Hybrid Power Rectifier System
| Input voltage |
120 to 425VDC.rated 340VDC |
| Efficiency |
>96% |
| Rated power |
3000W((200 to 425VDC) |
| Working temperature |
-40℃~+75℃(50℃ @ fully output) |
| Dimension |
106.5mm(W)×286mm(D)×44.5mm(H)(1U height) |
| Weight |
≤2kg |
| Cooling mode |
Forced cooling |
| Power factor |
≥0.99 |
| THD |
≤5% |
| DC output |
–43 ~ –58VDC, rated –53.5VDC, 55A maximum |
Controller of 12U 30kw Hybrid Power Rectifier System
| Controller |
Model: MC2900 |
| Signal input |
2 AI, 6 DI |
| Alarm output |
6 DO |
| Communication |
RS485: Supported
SNMP: Supported
|
| Display mode |
LCD screen |
Environment of 12U 30kw Hybrid Power Rectifier System
Operating
temperature |
-40℃ ~ +65℃ (full output below 50℃) |
| Storage temperature |
-40℃~+70℃ |
| Operating humidity |
5%~95%(non-condensing) |
|
Altitude
|
0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) |
